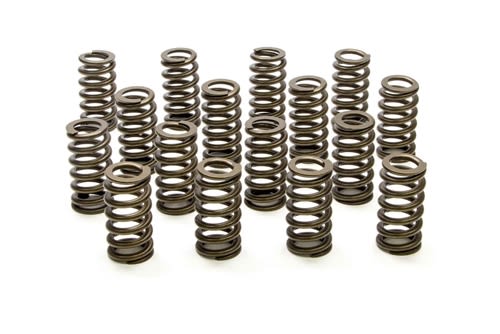

PAC 4.6 5.4 2V SOHC .600 Lift Beehive Spring Set 16

PAC Beehive Ovate Spring set fits all 99-UP PI headed 4.6 and 5.4 engines as a drop in replacement. Will fit with OEM retainers, seals and locks for up to .600" Lift. May also be used with any OEM sized Moly or Titanium Retainers. This is a set of 16 pcs.

• • Part#PAC-1214
  • NameValve Spring
  • Alt Part#PAC-1214-16
  • DescriptionFord 4.6L 2V .600 lift Beehive Ovate Valve Spring
  • OD Large End1.061
  • ID Large End0.698
  • ID Small End0.636
  • Install Height1.640
  • Load at Installed Height100
  • Spring Open Height1.080
  • Spring Open Load265
  • Recommended Valve Lift0.600
  • Spring Rate (lbs/in)275
  • Mass (grams)43.20
  • Coil Bind (max)1.040
