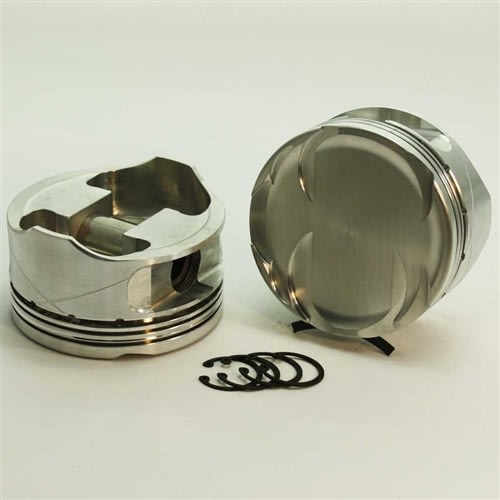

DSS Racing 4.6 5.4 2V 3V 4V 4032 FX Series 13cc Dished Piston Set

DSS Racing 4.6 5.4 2V 3V 4V 4032 FX Series 13cc Dished Piston Set



Alternative Views:


List Price: $731.65
Our Price: $599.95
You save $131.70!

Price with Selected Options: $599.95

Availability:: Usually Ships in 3 to 5 Business Days
Product Code: DSS1-4857

Block Bore Size

4.6 / 5.4 Bore Size*:
Standard Bore (3.552")
+.020" Over Bore (3.572")
+.030" Over Bore (3.582")
Upgrade Piston Pins

Choose STRONGER Piston Pins:
UPGRADE to TOOL STEEL HEAVY WALL Piston Pins for BIG BOOST and HP [Add $250.00]
Piston Coatings

Choose Coating Options*:
NO EXTRA COATINGS**Note: Mahle, Wiseco, Manley all come with skirt coating already!
Top Thermal Barrier Coating - Ceramic Metallic (CANNOT be done with Mahle Pistons) [Add $350.00]
Dry Film Lubricant Skirt Coating on Pistons [Add $200.00]**(Probe, Ross, Diamond, or CP ONLY) Note: Mahle, Wiseco, & Manley come with Skirt Coatings!
BOTH: Skirts and Top Coating - Dry Film Skirt and Ceramic Thermal Top [Add $525.00]** (Probe, Ross, Diamond, CP) Note: Mahle, Wiseco, Manley all come with skirt coating already!
Piston Kit Options

Choose Kit Rings*:
Complete Piston Kit with ModMax Plasma Moly File Fit Rings ($18.00 SAVINGS!) [Add $102.00]
Complete Piston Kit with ModMax Stainless Steel File Fit Rings ($39.00 SAVINGS!) [Add $170.00]
NO Rings Needed, Pistons ONLY

Qty:
Description

DSS RACING 4032 FX SERIES PISTONS 13CC DISH 4.6 OR 5.4 2V 3V and 4V ENGINES - MULTI FIT

  • Strong, Endurance Minded, Wear Resistant, Low Maintenance, 4032 Alloy
  • Proprietary "DMAX" Multi Stage Forging Process, Produces' a Superior Forging
  • Patented "X Groove" Skirt for Superior Cylinder & Ring Performance & Durability
  • Advanced Ring Lands Featuring a Combination of Accumulators and Drilling Ops.
  • 6 additional areas of CNC milling for weight reduction in non critical areas.
  • Thinner Ring Grooves Maximize Critical Ring Land Strength
  • Larger CNC Machined Valve Reliefs for More Aggressive Head & Cam Combinations
  • DSS Heavy Duty 8720 Bearing Steel Piston Pins
  • Precision Diamond-Turned Skirts
  • Double True Arc Pin Locks, Provide Redundancy
  • Drilled Forced Wrist Pin Oiling
  • Drilled Bottom Ring Land Intersecting Oil Drain Backs
  • Advanced Profile Precision Diamond-Turned Skirts
  • Forged and Machined in Saint Charles Illinois USA!
  • Has valve reliefs for all 2V, 3V, and 4V engines
  • 4032 Pistons for tight piston to wall clearances good for low boost and naturally aspirated engines for good ring seal and reduced wear

Pistons come with pins and locks but DO NOT INCLUDE RINGS. You must use rings made for these pistons. Available as a package price in options chosen when adding to our cart.

Bore sizes available: 3.552" (STD), 3.572" (.020"), and 3.582" (.030")
Compression Height: 1.210"
Pin Size: .866" (OEM Size)
Dish/Dome Volume: -13cc (dished)
Ring Grooves: 1.5mm, 1.5mm, 3mm

COMPRESSION RATIOS:
4.6 2V PI = 10.00:1
4.6 3V/4V = 8.9:1
5.4 2V PI = 9.3:1
5.4 3V/4V = 8.5:1
