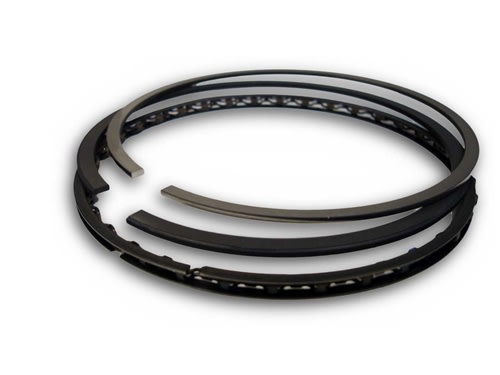

ModMax 4.6 5.4 STAINLESS STEEL File-Fit Rings 1.5/1.5/3MM

ModMax 4.6 5.4 STAINLESS STEEL File-Fit Rings 1.5/1.5/3MM



Alternative Views:


List Price: $289.95
Our Price: $209.00
You save $80.95!


Product Code: 25004603

Block Bore Size

4.6 / 5.4 Bore Size*:
Standard Bore (3.552")
+.020" Over Bore (3.572")
+.030" Over Bore (3.582")

Qty:
Description

NEW and IMPROVED !!!
Gas Nitrided Top, Napier 2nd, Stainless Steel Rings for 4.6 and 5.4 2V, 3V, and 4V Engines

ModMax STAINLESS STEEL Piston Rings are a necessity for Supercharged, Turbocharged, High Boost, and High Nitrous Injected Modular engines. These rings are manufactured with exacting tolerances for OEM sized 1.5mm top groove, 1.5mm 2nd groove, and 3mm oil groove pistons. Our unique and exclusive design allows these rings to work on all Modular pistons with OEM sized ring grooves (ModMax, CP, Ross, Mahle, KB, Probe, Diamond, Manley...etc.) The rings feature a GAS NITRIDED Stainless Steel Alloy top ring engineered for instant seating, superior sealing, and optimum durability. In very high heat and cylinder pressures this material top ring will not get soft or lose tension, plus it will hold up its composition without flaking or chipping in the most extreme environments. THESE RINGS ARE A MUST IF YOU WILL BE RUNNING MORE THAN 12LBS OF BOOST OR HIGH AMOUNTS OF NITROUS OXIDE! The second cast iron rings feature a NAPIER Taper Hook Groove design for superior cylinder scraping reducing oil migration into the combustion chamber. Oil rings are a low drag, yet standard tension design for superior oil control for use in all naturally aspirated or boosted environments. The rings come in standard, +.020", or +.030" bore sizes with an additional .005" oversize for file fitting. NOTE: These rings MUST be file fit for each particular engine.
Features
  • SUPER ULTRA HIGH STRENGTH Stainless Steel Alloy Top ring
  • NITRIDED and Hardened for use with TURBOS, NITROUS, BLOWERS
  • NAPIER style Taper Hook Groove 2nd ring for better oil scraping
  • 1.5mm, 1.5mm, 3mm OEM Groove Sizes
  • File to Fit oversized by .005"
  • Low Drag, Standard Tension Oil Control Rings
  • Fits most major branded OEM groove sized Pistons
  • Bulk manufacturing allows us to have the best price in the business on these rings
  • Available for standard (3.552"), +.020" (3.572"), and +.030" (3.582") Bore sizes
