Clinton Phalin turned to us for help with his project "WIDOW" 2008 Mustang. His goal was to have a twin turbo 3V street car with gobs of horsepower and torque on hand. The result: SUCCESS!! 992 RWHP and 939 LB-FT of TORQUE! This car is a beautiful ride with a lot of details and fine craftsmanship. Here is an excerpt from the article where they featured his built car in Muscle Mustangs and Fast Fords Magazine:
Although he lives way up north in Wisconsin, he is great friends with some influential, enterprising, and much warmer souls in Florida and Alabama. Discussion began with his friend Dale Metlika at ModMax Racing in Ft. Lauderdale (a subset of ProPower Performance Parts). Talk centered on the three-valve 4.6L engine and the inevitable horsepower tsunami. Metlika would science-out and build the backbreaker short-block. Rather than the stock aluminum cylinder case, he chose the proprietary-iron mix of the FRPP cast-iron Boss block (M-6010-BOSS50). With a renewed bore of 3.700 inches and a stroke of 3.800, he put together an exclusive 327ci parcel composed of a Kellogg forged steel crankshaft, 9.5:1 CP pistons, and Carrillo H-beam connecting rods, all of it a supreme hedge against the ravages of savage boost.
See the rest of the article here: http://www.mustangandfords.com/featured-vehicles/1...
This 327ci combination was custom built by ModMax with a host of parts we offer here including:
- Ford Racing BOSS 5.0 Block
- Custom Designed High Horsepower CP Pistons
- H13 Tool Steel Heavy Wall Pins

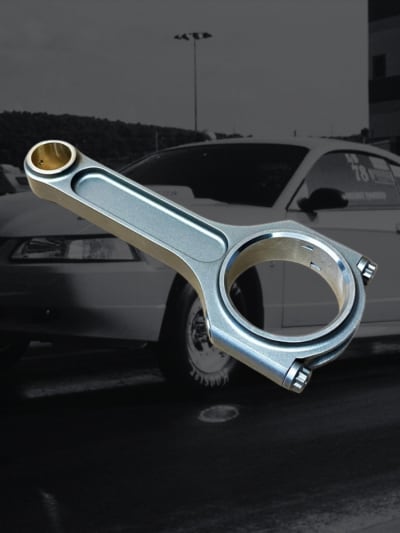

- Carrillo PRO H-Beam Rods
- ModMax Nitrided Stainless Steel Rings
- King HP Rod and Main Bearings
- ARP2000 Head Studs
- ARP Main studs and side bolts
- Melling 10340 Billet Gear Oil Pump
- ModMax Lifters and Rocker Arms
- Manley 3V Oversized Valves
- CUSTOM 3V Turbo camshafts
- Cometic 94mm 3V Head Gaskets
- All CUSTOM machine work and assembly
- Much, much more....
|
Lunati 4.6 5.4 3V SOHC 279/287 High Lift Phaser Mods Req'd
|
|
Crower 4.6 5.4 4V DOHC Stage 3 Camshafts
|
|
Viton Valve Stem Seals 4.6 & 5.4 DOHC 4V ALL (Set 32)
|
|
Ferrea Exhaust Valve DOHC 4V 30mm 6000 Series
|
|
|
|
|
|
|
|
|
|
Hydraulic Roller Swinging Follower Cam Set. The biggest and baddest of the bunch. Incredible power gains. Like ported heads, 4.10+ gears and 3500 stall. Need springs, phaser mods and custom tun- ing. Very rough idle. Advertised Duration (Int/Exh): 279/287 Duration @ .050 (Int/Exh): 241/249 Gross Valve Lift (Int/Exh): .508/.516 LSA/ICL: 112/102 Valve Lash (Int/Exh): Hyd/Hyd RPM Range: 1200-7200 Includes: Cams Only Part Number: 21270720
|
Ford - 4.6L & 5.4L 3 Valve
Performance level - Stage 2 - Hot Street Profile with explosive mid-range torque. Supercharged/Nitrous.
INT/EXH - Dur @ .050” Lift: 200°/216° RR: 2/2 Gross Lift: .492”/.492” LSA: 114° RPM: 1200 to 6200 Redline: 6500
|
VITON 4.6 and 5.4 Valve Stem Seals DOHC 4V Engines. High Performance, High Temp material.
|
Ferrea 4.6 and 5.4 DOHC 30mm Exhaust Valve 6000 Series
|
|
|
|
Crower 4.6 5.4 3V SOHC Stage 1
|
|
Diamond 5.0 Coyote 6cc Dished Pistons
|
|
Lunati 4.6 5.4 3V SOHC 267/275 High Lift Phaser Mods Req'd
|
|
Eagle Forged 4340 3.750" Stroker Crankshaft 4.6
|
|
|
|
|
|
|
|
|
|
|
Ford - 4.6L & 5.4L 3 Valve
Performance level - Stage 1 - Excellent for stock replacement. Programming recommended.
INT/EXH - Dur @ .050” Lift: 188°/200° RR: 2/2 Gross Lift: .480”/.468” LSA: 114° RPM: 1000 to 5900 Redline: 6400
|
5.0 Coyote 6cc Dish 9.5:1 Forged Pistons
|
Hydraulic Roller Swinging Follower Cam Set. Powerful cams with rough idle. Good mid range and top end. Like 3.90 gear and 2500 stall. Need springs, phaser mods and custom tuning. Advertised Duration (Int/Exh): 267/275 Duration @ .050 (Int/Exh): 229/237 Gross Valve Lift (Int/Exh): .496/.504 LSA/ICL: 112/102 Valve Lash (Int/Exh): Hyd/Hyd RPM Range: 900-6900 Includes: Cams Only Part Number: 21270714
|
4.6L Modular 3.750" Forged E4340 Steel Crankshaft by Eagle Specialty Products
|
|
|
|
Lower Gasket Kit Fits 4.6 96-08 Romeo, 4.6 All 4V, and 03-04 5.4 4V Navigator
|
|
Edelbrock E-Force Street Legal Supercharger Kit for 2009-10 Ford F-150 2-Wheel Drive (5.4L 3V)
|
|
Wiseco 3V SOHC 4.6 5.4 Forged 6cc Dished Pistons and Rings
|
|
Lower Gasket Kit Fits 4.6 99-04 2V Windsor, 03-05 4.6 3V, 99-08 5.4 2V, 04-09 5.4 3V
|
|
|
|
|
|
|
|
|
|
|
Lower Gasket Kit 4.6 4V, 4.6 Romeo, 5.4 4V
|
EFORCE S/C KIT F150 LEGAL
|
4.6 and 5.4 Forged Wiseco 6cc Dished Pistons w/Rings
|
Lower Gasket Kit Fits 4.6 99-04 2V Windsor, 03-05 4.6 3V, 99-08 5.4 2V, 04-09 5.4 3V
|
|
|
|
Lunati 4.6 5.4 3V SOHC 264/276 Low Lift Stock Phasers
|
|
Moroso 2V SOHC Romeo (11 Bolt) BILLET Alum. Valve Covers
|
|
Edelbrock Competition Supercharger Kit for 2010 Ford Mustang 4.6L 3V
|
|
Icon 4.6 / 5.4 Forged 10cc Dished Pistons
|
|
|
|
|
|
|
|
|
|
|
|
Hydraulic Roller Swinging Follower Cam Set. Great gains for stock motor. Like a 3.73 gear and a 2500 stall. Great sound. Works with stock springs and tune. No phaser mods required. Advertised Duration (Int/Exh): 264/276 Duration @ .050 (Int/Exh): 225/237 Gross Valve Lift (Int/Exh): .450"/.450" LSA/ICL: 116/102 Valve Lash (Int/Exh): Hyd/Hyd RPM Range: 800-6500 Includes: Cams Only Part Number: 21270700
|
2V SOHC Romeo (11 Bolt) BILLET Alum. Valve Covers
|
EFORCE S/C KIT 2010 4.6L TUNER
|
4.6 and 5.4 Forged Keith Black Racing Pistons 10cc Spherical Dish
|
|
|
