5.0 Coyote 11-17 Gen 1 or 2 1200HP Rotating Assembly

5.0 Coyote 11-17 Gen 1 or 2 1200HP Rotating Assembly

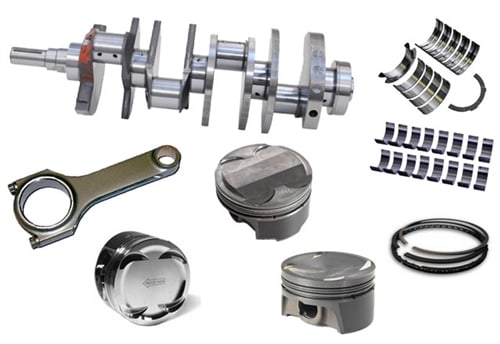

Photo is a GENERAL representation of the parts included in this kit. Your particular parts may not match these exact photos



List Price: $2,697.00
Our Price: $2,195.00
You save $502.00!

Price with Selected Options: $2,195.00


Availability:: Usually Ships in 1 to 2 Business Days
Product Code: 99025152

Piston Options

Piston Options (99025151)*:

Crankshaft Options

Crankshaft (Coyote):
Forged OEM Ford Coyote Crankshaft
Callies Forged 4340 Stock Stroke Crankshaft [Add $850.00]
Upgrade Piston Pins

Choose STRONGER Piston Pins:
UPGRADE to TOOL STEEL HEAVY WALL Piston Pins for BIG BOOST and HP [Add $280.00]
Piston Coatings

Choose Coating Options*:
NO EXTRA COATINGS**Note: Mahle, Wiseco, Manley all come with skirt coating already!
Top Thermal Barrier Coating - Ceramic Metallic (CANNOT be done with Mahle Pistons) [Add $350.00]
Dry Film Lubricant Skirt Coating on Pistons [Add $200.00]**(Probe, Ross, Diamond, or CP ONLY) Note: Mahle, Wiseco, & Manley come with Skirt Coatings!
BOTH: Skirts and Top Coating - Dry Film Skirt and Ceramic Thermal Top [Add $525.00]** (Probe, Ross, Diamond, CP) Note: Mahle, Wiseco, Manley all come with skirt coating already!
Connecting Rod Options

Rod Options (MH)*:

Remove Crankshaft

Remove Crankshaft from Assembly:
Remove Stock Stroke Coyote 5.0 Forged Crank from Rotating Assembly [Subtract -$325.00]This is the option to Check if you need everything but the crankshaft for your engine!
Internal Balancing

Balance Rotating Assembly:
Internal Balance Rotating Assembly (please allow 3 to 7 days extra time for balancing) [Add $400.00]
Bearing Coatings

Add Coatings to Bearings:
Upgrade to Dry Film Lubrication Coatings on the High Performance Bearings [Add $140.00]

Qty:
Description

These 1200 RWHP Rotating assemblies are perfect for big boost applications with a stock 11-17 Coyote block. With optional connecting rod choices and piston options you can tailor this kit to your needs. All of the connecting rod and piston choices will support 1200 RWHP and up. These kits include the following parts to rebuild a stock block 11-17 Gen 1 or Gen 2 Coyote 4V engine:

  • Forged Steel OEM Style 5.0 Coyote or *Callies 4340 (*extra cost) Crankshaft
  • Choice of H-Beam or I-Beam Rods with ARP 2000 bolts from Modmax, Eagle, Manley, Molnar, Callies, Wiseco, Oliver, or Carrillo.
  • Choice of Mahle, Manley, Ross, Wiseco or Diamond FORGED Pistons (Choose your piston with the dropdown menu for bore size and compression ratios)
  • Steel piston ring set matched for the pistons chosen
  • High Performance King Rod and Main Bearings (coatings optional)
CHOOSE THE OPTIONAL PISTONS FOR YOUR DESIRED COMPRESSION AND FINISHED BORE SIZE

  • Mahle 2618 Forgings 9:1, 9.5:1, or 12.4:1 (fully coated) in Standard or .010" (9:1 only) - (fully coated)
  • Manley 2618 Forgings 9:1, 10:1, or 11:1 in Standard, .005", or .010" Over (coated skirts)
  • Ross 2618 Forgings 9:1, 10:1, or 11:1 in .002" or .010" Over (no coatings)
  • Wiseco 2618 Forgings 9:1, 10.5:1, or 11:1 in Standard, .005", or .010" Over (coated skirts)
  • Diamond 2618 Forgings 9:1, 9.5:1, 10.5:1, 11:1, or 11.5:1 in Standard or .010" Over (no coatings)
